Air-Con SD Premium - 24000 BTU - 18 SEER - 2 Ton Pre-Charged Heat Pump Inverter - Ducted Central Air Conditioner

Heat & Cool - Enjoy year round comfort with the ability to heat or cool your room or space.

Energy Savings - With a SEER up to 18 rating**, you can save money on your monthly electricity bill!

Note: Licensed HVAC technician required for proper installation and maintenance.

Unit Features:

• Cooling up to 5° F

• Heating up to -13° F
• 220v / 1ph / 60Hz

Features

Key Features:

• Cooling up to 5° F
• Heating up to -13° F
• 220v / 1ph / 60Hz

Technology

Tech & Specifications

Specifications

Model	ASDCI4H4S24/ASDEM4H4S24-ASDDI4H4S24/ASDVI4H4S24
Voltage/ Frequency/ Phase	208/230V - 60Hz - 1 phase
Cooling Capacity	24000
Heating Capacity	24000
Watts	2200
Amperage	9.6
SEER	18
HSPF	10
Operating Ambient Temperature	5° F Cooling / -13° F Heating

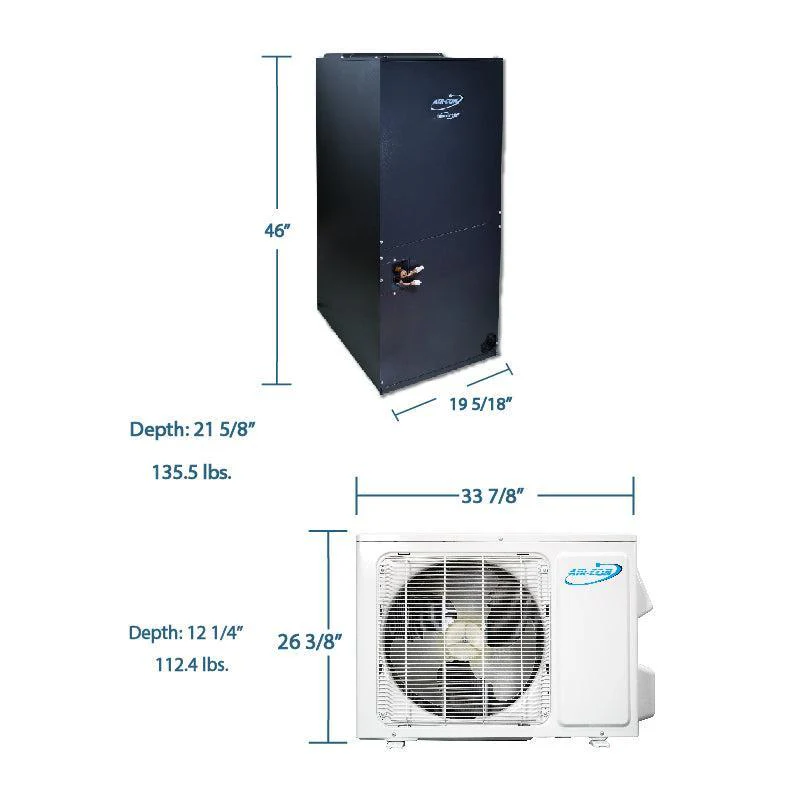

Indoor Unit Dimensions	19-5/18" x 46" x 21-5/8"

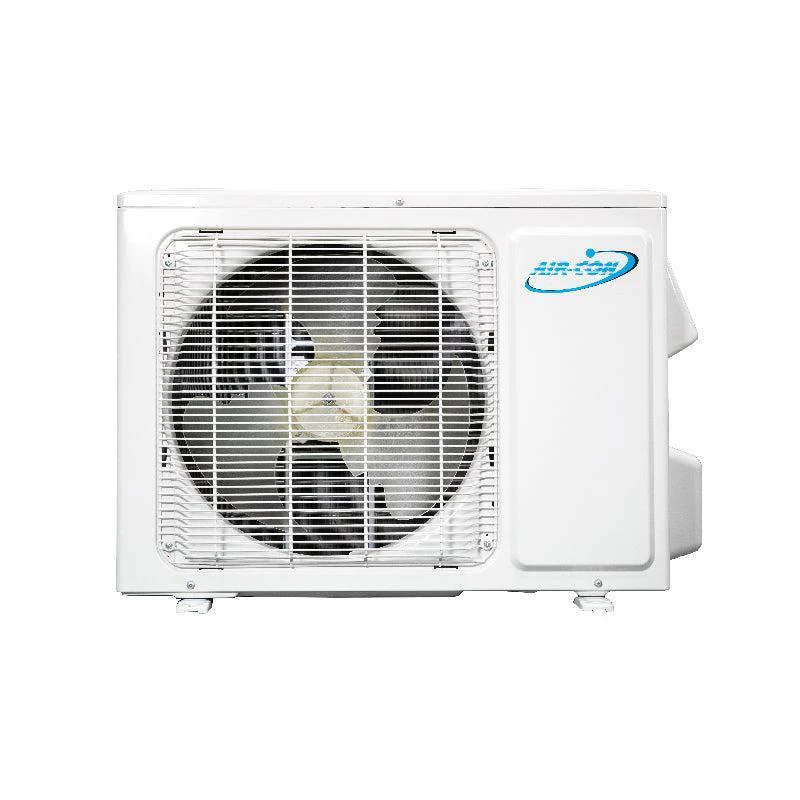

Outdoor Unit Dimensions	33-7/8" x 26-3/8" x 12-1/4"
Lineset Size	3/8" & 5/8"

Warranty Details

10 Year Parts Warranty, 10 Year Compressor Warranty

Information & Guides

Indoor Unit Use and Instruction Manual

Outdoor Unit Use and Instruction Manual

AHRI Certification
