Ductless Mini Split Condensers Electric Component Installation Kit

This DIY ductless mini-split installation kit for condensers includes a whip, surge protector, and disconnect safety switch. This installation kit has all of the accessories that you will need to have your DIY mini split condenser professionally installed.

Includes:

• 1/2" x 4' electrical whip - PN 6-12-6

• 60A non fused disconnect - PN 83315

• Surge Protector - PN ICM517

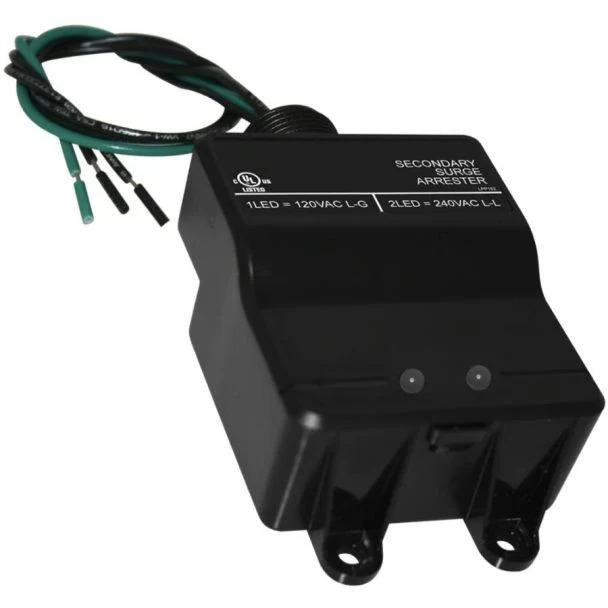

Single-Phase Surge Protector – 120/240 VAC, 100,000 Amp, 1020 Joules

Protect your valuable equipment from lightning power surges and voltage spikes with this high-performance Single-Phase Surge Protector. Designed to provide reliable protection for HVAC systems, air conditioners, motors, and generators, this unit safeguards against damaging electrical surges at 120/240 VAC.

Key Features:

• UL Listed, Type II Device: Ensures compliance with industry safety standards.
• Easy Installation: Simple and quick to integrate into your system.
• High Surge Capacity: Handles up to 100,000 amps for maximum protection.
• Superior Energy Dissipation: Absorbs surges up to 1,020 joules.
• Versatile Protection: Shields against surges from lightning, A/C units, motors, and generators.
• Rugged & Reliable: Built for long-term durability and consistent performance.

Specifications:

• Service Voltage: 120/240 VAC, Single Phase
• Maximum Surge Current: 100,000 amps
• Maximum Energy Dissipation: 1,020 joules

Ideal for residential and commercial HVAC applications, this Single-Phase Surge Protector delivers affordable, high-performance protection to keep your system running safely and efficiently.

Disconnect Switch 60A Non-Fuse

The disconnect switch is used to ensure that an electrical circuit is completely shut off for service or maintenance.

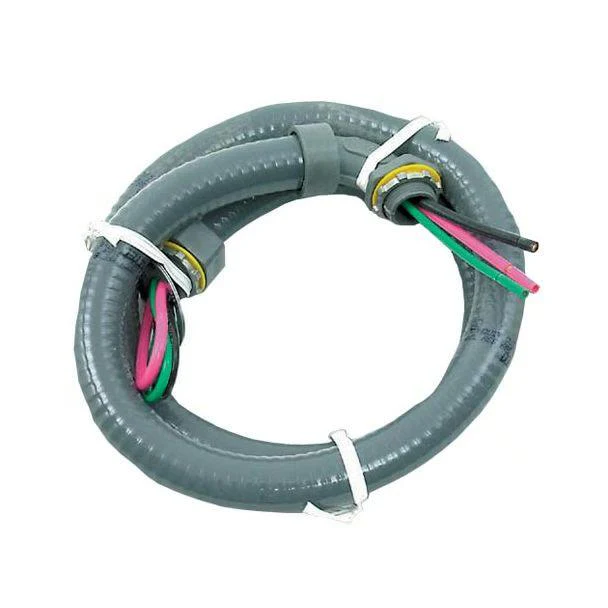

Electrical Whip 1/2" X 4' 10 Gauge Metallic

This 1/2" x 4' 10-Gauge Metallic Electrical Whip is a pre-assembled, ready-to-install solution for powering HVAC units, mini splits, and other outdoor equipment. Built with durable liquid-tight conduit and color-coded THHN/THWN conductors, it provides safe and secure electrical connections in demanding environments.

Key Features:

• Heavy-Duty Construction: 10-gauge conductors housed in liquid-tight metallic conduit for rugged protection.
• Pre-Assembled for Convenience: Saves time with factory-installed connectors and conductors.
• Color-Coded Wires: Includes black, red, and green THHN/THWN conductors for easy identification.
• Flexible Connections: Comes with (1) straight and (1) 90-degree non-metallic liquid-tight connector for versatile installation.
• Ideal for HVAC Systems: Commonly used to connect condensers, mini splits, and other outdoor electrical equipment.

Specifications:

• Conduit Size: 1/2" trade size
• Length: 4 feet
• Wire Gauge: 10 AWG
• Conductors: Black, Red, Green (THHN/THWN)
• Connectors: (1) Straight, (1) 90° Liquid-Tight Non-Metallic

Perfect for professional installers and DIYers alike, this Electrical Whip delivers a safe, flexible, and code-compliant power connection for your HVAC setup.

ICM Controls Surge Protector - 120/240 VAC, Single Phase, Max Current 100,000 Amp, Max Energy 1020 Joules Specifications:

SKU	ICM517
Weight (in lbs)	0.650000
Brand/Manufacturer	ICM Controls
Size Range	38" Wide & Up
Length	8.2"
Height	3"
Width	6.25"
Resources	Product Guide Installation Guide
Safety Information	PROPOSITION 65 WARNING

Disconnect Switch 60A Non Fuse Specifications:

SKU	83335
Weight (in lbs)	2.500000
Brand/Manufacturer	Online Supply
Additional Information	Knockout Dimensions: 1/2"x3/4"x1"
Length	2 3/8"
Height	7 1/2"
Width	5"
Safety Information	PROPOSITION 65 WARNING

Electrical Whip 1/2" X 4' 10 Gauge Metallic Specifications:

SKU	84132
Weight (in lbs)	5.000000
Brand/Manufacturer	Diversitech
Length	4 Feet
Safety Information	PROPOSITION 65 WARNING
